的用途与简单：/Purpose and introduction

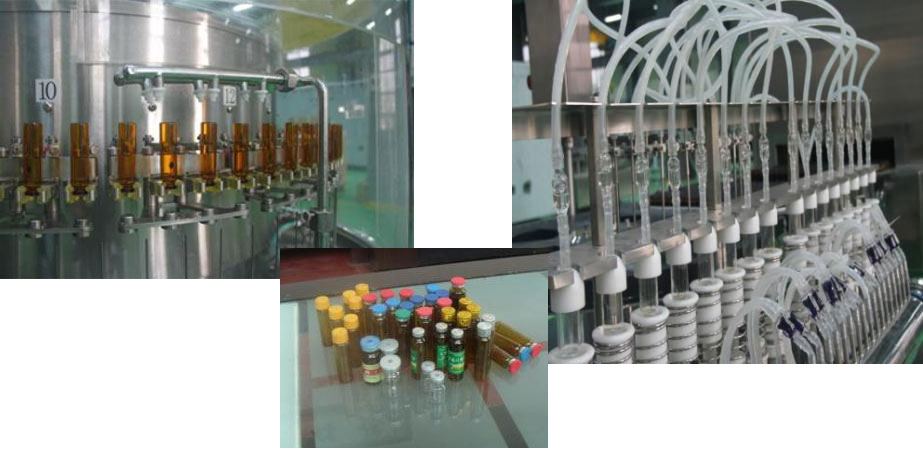

内服液洗烘灌轧协作线由落地式高周波波洗瓶机、所谓的隧道式自动空调 嵌套循环无菌真空烘箱、内服液分装加工线轧盖机等包含，符合于 5-30ml 等有所差异规 格内服液瓶的加工。可完整对产品加工中安瓿瓶淋水、高周波波除垢、冲水、充 气、烘烤无菌、保压、分装加工线、轧盖等工艺流程过程的协作作业。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

优点和缺点:/characteristic

◆洗瓶机分为机械化手夹瓶，适于许多种型号规格的水瓶座；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶分为水蒸汽喷针回转式跟踪软件放玩法，清理的好，业绩能源开发。并配有针架防晃动系统设计，改善喷针放瓶里的为准度，减掉断针后果有；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶正个水汽内部管道、喷针完全性独力分着，以免了是交叉污染破坏，按照GMP规定的要求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶挤出机挤出机螺杆前另装加载块，有爱护挤出机挤出机螺杆，减轻碎瓶用Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶选用整体上进出口发送到带，进行连接拨块推送服食液，启动稳定靠普靠普In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆烘烤箱用到红外线加熱管，不锈钢圆管加熱管加厚加熱环境温度均匀的性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆装罐轧盖机待选配陶瓷图片泵、不锈钢304泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆装灌无瓶止灌，无瓶不轧盖特点。Pieces filling without bottle filling, no bottle no rolling function.◆整线用于PLC总把握、调频器、摸屏把握形式，进行相对稳定能信性。摸屏可出现各单机版的进行状况，各把握点的通水压力、标准气压、静压、摄氏度等出现，各按钮状况和报警出现，报警自我认识诊断报告和报警概述及查出形式。使一部分制作加工方式高达自功化把握，联线享有三机测控平稳传动装置，保护制作加工匀衡能信性。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.基于的客户的要有，还可供标配：According to the needs of customers, but also available for selection:◆西门子设备、德力西、西门子、台达等品牌形象控制设备；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气压力差、油温及高周波波的强度、尘灰物体、风压再线查测、报警器、数据、彩印设计。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、无菌检测隔離器机系统。Mixer ORABS, CRABS, aseptic isolator system.

技巧参数值：technical parameters

适于外形尺寸Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
装罐高精准度Filling accuracy(%)	≤ ± 2.5
装罐头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖及格率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
