主要用途与概况/Purpose and introduction

该加工线由理瓶机(上瓶台)、mri波洗瓶机，装灌(旋盖)加塞机，轧盖机，贴标签机等主设备构成的On the production line by unscramble bottle machine (bottle), ultrasonic bottle washing machine, filling (screw cap) stoppering machine, rolling machine, labeling machine and other equipment

特色/characteristic：

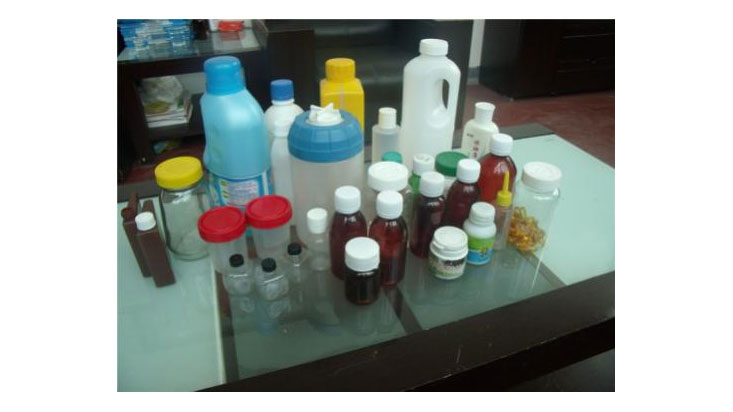

该生产方式制造线是和于 30-500ml系例商品的分装加塞密封，换掉些许規格合金模具后，既是和于PVC瓶，也是和于波璃瓶。包括适用区间广泛的，調整方面的性能。整线生产方式制造工作能力；适罐子面积大小外形，物品效果而定。The product line is suitable for 30-500 ml series products filling barging sealing, change some specifications after the mould, is suitable for plastic bottle, also suitable for glass bottle. Have to adapt to a wide range, convenient adjustment. The whole line production capacity; Optimum size bottle shapes, object on the viscosity.

高技术系统参数/technical parameters：

生产能力production capacity(pcs/h)	80-120(8针灌装、6头轧盖    40-60(4针灌装、单头轧盖)
洗瓶卫生度Washing bottle cleanliness(%)	> 99
装量误差度The load error(%)	0-2
上塞合格品率Plug on the percent of pass(%)	> 98
轧盖符合标准率Rolling cover percent of pass(%)	> 98
功率power(kw)	11
外形尺寸boundary dimension(LxWxH)   (mm)	9.740 × 1,470 × 1,785
