贷款用途与详细介绍：Purpose and introduction

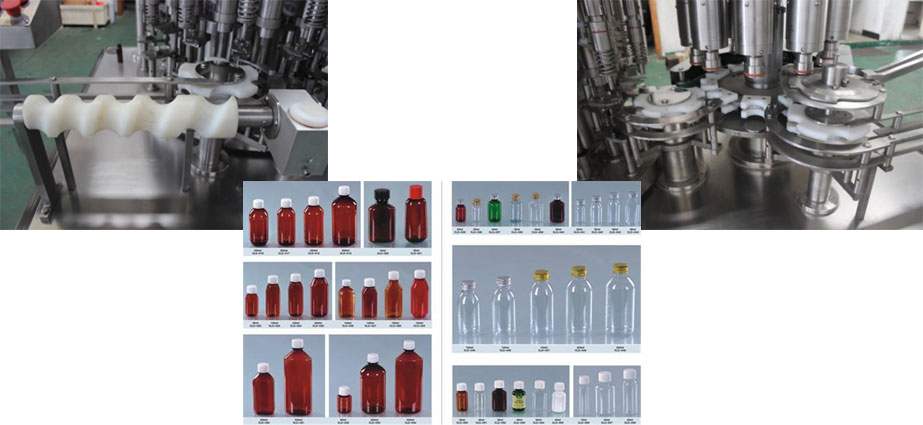

滤油机选主要用于对30-500ML产品系列夹层玻璃罐、塑胶板材瓶的罐装线粘口。采用了往来账结交式柱塞展开罐装线，电磁感应自由振荡送盖，能轧盖(不锈钢式)或旋盖(塑胶板材盖)粘口，能和之前之后的分娩多种工序设备相联构成分娩线，除外能选购指南百级层流罩。This machine is suitable for the filling and sealing of 30-500ml series glass bottles and plastic bottles. The reciprocating between piston filling, electromagnetic oscillation send cover, cover (metal) can be rolled or screw cap (plastic cap) sealing. Can produce and the produce of the process equipment before and after connecting line. In addition, the laminar flow hood is available for selection.

作用：characteristic

装量精确度，杜尽漏滴。缺瓶不包装。 变頻可控硅调压。 自主体现 记数的功效。 机器均按GMP的要求制作。The filling amount is accurate, as Du drip. Lack of bottle does not fill. Frequency control of motor speed. Active display count. The machine according to the GMP request design.

枝术性能参数/technical parameters：

型号 model	NQGX30-500
适用于产品规格Cutting dimension	30-500ml
生产水平Production capacity	80-200瓶/分（罐/分钟左右）80-200 bottles/min (cans/min)
包装要求 Filling accuracy	≤±1%
主机电源 Power	380V/50Hz
旋（轧）盖率Spin (rolling) cover rate	≥99%
功率power	3.0 kw
机械设备制造净重量 Machine weight	1500 kg
外形尺寸 boundary dimension	3000*1100*1700mm
